The Casting Division of Bet Shemesh Engines Ltd. (BSEL) produces air foils and structural parts for the most advanced engines, such as Pratt & Whitney’s GTF, GE LEAP, GP7000 and more. This is achieved by meeting the engine manufacturers’ most demanding standards in quality, competitive pricing and “on time delivery”.

The Casting Division of Bet Shemesh Engines produces parts by investment casting. via vacuum and air melts. The Casting Division, together with BSEL’s Manufacturing Division together create a one-stop-shop at BSEL in the Engine Parts Sector – both at BSEL’s main plant in Bet Shemesh, Israel, and also at LPO – BSEL’s fully owned subsidiary in Ada, Serbia.

BSEL’s ability to reduce “time to market” dramatically with our Rapid Prototype Center capabilities in the Casting Divisions, where parts can be produced in a very short time to support quicker assembly and engine test runs. Our engineering team has vast experience with design capabilities and uses advanced tools such as ProCast® simulation.

Our customers can also rely upon our ceramic core production plant, approved by PW, MTU, Siemens, and others.

BSEL’s recent venture into the Single Crystal technology shall lead to further expansion and broadening of BSEL’s Casting Division’s capabilities.

Typical Alloys

  • Austenitic stainless steels: 302, 303, 304, 304L, 316, 316L, 347
  • Martensitic stainless steels: 410, 416, 420, 431
  • Precipitation hardening stainless steels: 17-4PH, 15-5PH
  • Cobalt alloys
  • Vacuum melt alloys: IN-100, IN-713, IN-718, IN-738, IN-792, IN-939, RENE 08, RENE 41, RENE 77, RENE 80, RENE 125, B-1900, MAR-M, (Alloy 247), U-500

Product Size

  • Air melt: up to 68 Kg/150 lb, Ø 25” / H 25”
  • Vacuum melt: up to 32 Kg/70 Ib, Ø 20” / H 20

Typical parts

Airfoils (blades and vanes, solid and core), integral compressor and turbine wheels, blisks, gas turbine engine “hot parts”, air valves for aircraft environmental control systems (ECS).

Typical Applications

Blades, vanes, clusters and nozzles for PW4000, V2500, APS 2300, APS 2800, APS 3200, APS 5000, PWC 210, PWC 306, PWC 307, PWC 545, LEAP, NEO and others.

Quality Assurance

  • NADCAP approvals
  • GE Aviation
  • ISO 9001
  • MTU Aero Engines
  • AS 9100
  • Snecma
  • Pratt & Whitney
  • Siemens

Special Processes in house

  • Heat Treatment
  • HIP (Hot Isostatic Pressure
  • Welding
  • Surface Treatment
  • Rapid Prototype Center

Inspection

  • Dimensional (CMM)
  • Chemical testing
  • Metallurgical testing (MCL)
  • Fluorescent Penetrant Inspection (FPI)
  • Magnetic Particles Inspection (MPI)
  • NDT (Non Destructive Tests): X-ray (film, digital), Eddy Current Inspection (ECI) and Ultrasonic (US)

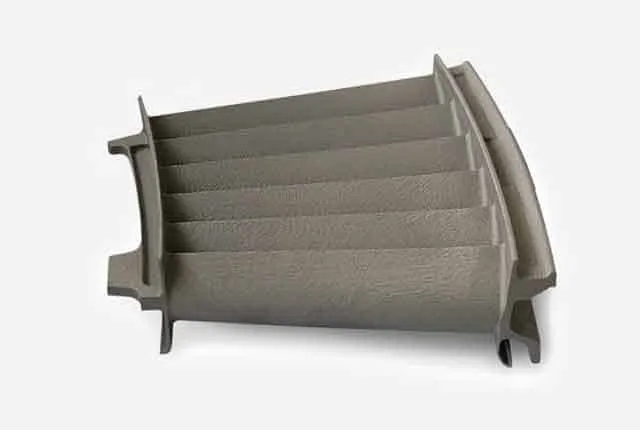

APS2300 1ST STAGE NOZZLE

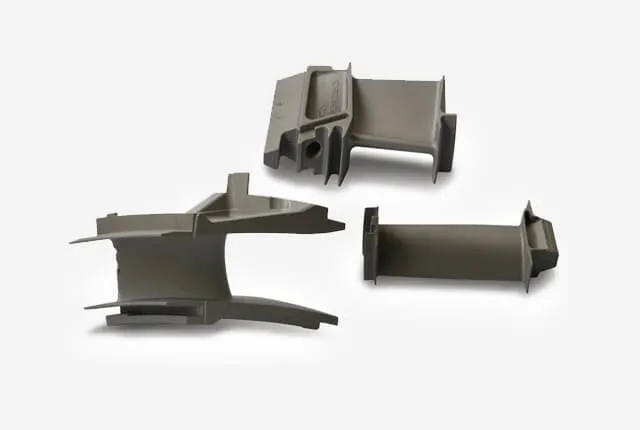

BLADES AND VANES

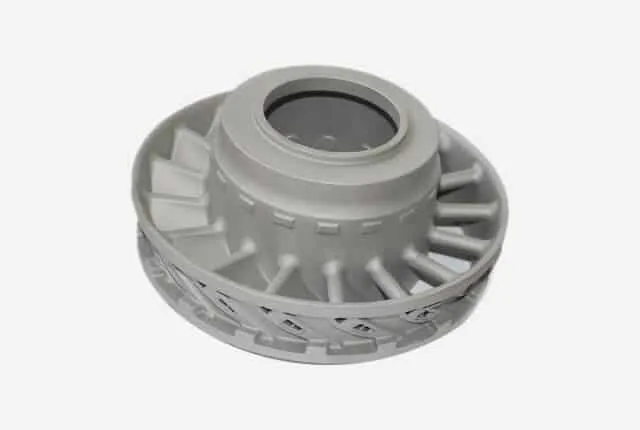

RAPID PROTOTYPE PARTS
